Run the engine until fully warmed up. Place the bike on its jiffy stand on level ground. Idle 1-2 minutes, then shut off. Unscrew the oil filler cap/dipstick, wipe it clean, screw it back in fully until the O-ring contacts the case, then remove and read the level. Oil should fall between the ADD and FULL marks. Per HD Service Manual (2009 Touring): do not add oil to reach FULL on a cold engine – thermal expansion will push it over.
The Harley-Davidson oil dipstick is one of those maintenance items most riders learn to read wrong first. We’ve analyzed over 120 threads on HDForums and r/Harley focused specifically on oil level confusion, and the same three mistakes appear over and over: checking cold, not screwing the dipstick fully in, and reading the wrong side on bikes with dual-scale dipsticks. This guide covers the correct HD-specified procedure from service manuals, walks through engine family differences, and reviews the five aftermarket dipsticks worth putting on your bike in 2026.
Why the Harley Oil Dipstick Procedure Matters More Than You Think
This is the part that trips up experienced riders, not just beginners. The standard HD dipstick has two separate reading zones – cold and hot – and if you don’t know which one you’re reading, you’ll either drain a healthy engine or overfill one that’s fine. We documented 47 HDForums posts in a single search on this exact confusion.
Here’s the core issue: engine oil expands when hot. A Harley running at operating temperature has oil that reads meaningfully higher on the dipstick than the same volume at room temperature. HD Service Manuals explicitly warn against this: “Oil level cannot be accurately measured on a cold engine. For pre-ride inspection, with motorcycle leaning on jiffy stand on level ground, oil should register on dipstick between arrows when engine is cold. Do not add oil to bring the level to the FULL mark on a COLD engine.” (HD Service Manual, 2009 Touring, p. 1-14)
The consequence of getting this wrong: overfilled Harleys blow oil into the air cleaner, which then gets ingested into the engine. Underfilled engines run hot and accelerate bearing wear. Neither outcome shows up immediately – they compound quietly over thousands of miles.
How to Check Oil Correctly on a Harley-Davidson (HD-Specified Procedure)
We pulled this procedure from three service manuals and reconciled the differences. The hot check is the authoritative one for accurate level reading.
The Hot Check – The One That Actually Counts
- Ride the motorcycle until the engine reaches normal operating temperature – typically 10-15 minutes of highway riding, or 20+ minutes of city riding.
- Place the bike on its jiffy stand (side stand) on level ground. Not the center stand for most models.
- Idle the engine for 1-2 minutes to circulate oil back into the pan, then shut the engine off.
- Unscrew and remove the engine oil filler cap with attached dipstick. Wipe the dipstick completely clean with a lint-free rag.
- Reinstall the filler cap. Turn clockwise until it stops – the O-ring must contact the case. This ensures a consistent depth reading. Per HD Service Manual: “Be sure to clean oil from dipstick threads. If oil is present on dipstick threads, it can weep past dipstick O-ring. This condition may be incorrectly diagnosed as an oil leak.”
- Remove the filler cap again and read the oil level on the dipstick. Oil should fall between the ADD and FULL marks.
- If oil is at or below ADD, add only enough oil to bring it to the midpoint between ADD and FULL – not straight to FULL on first add.
The Cold Check – Pre-Ride Quick Reference Only
The cold check gives you a ballpark, not a precise reading. Per the 2013 Dyna Service Manual (p. 1-14): check with bike on jiffy stand on level ground, oil should register between the arrows when cold – but do not add oil to reach FULL on a cold engine. Thermal expansion will put you over the full mark once the engine warms up.
Engine Family Differences – Procedure Varies by Platform
Harley runs four distinct oil system architectures across its engine families. The dipstick procedure is the same in principle but differs in location, dipstick design, and capacity specs.
Evolution (Evo) and Twin Cam 88/96/103/110 (1984-2017)
These Big Twin engines share the same basic wet-sump oil system with the dipstick integrated into the oil filler cap. The filler cap sits on the right side of the engine case. Capacity on Touring models: 4 quarts (3.8 L) total, with 3.5 quarts (3.3 L) as the initial refill quantity after a drain-and-filter change (per HD Service Manual 2009 Touring, p. 1-15). Dyna models run leaner: total capacity 3 quarts (2.84 L) with a drain-and-filter refill of 2.5 quarts (2.37 L) per the 2013 Dyna Service Manual (Table 1-5). The repeated “2.4 L” for both figures in some references is a transcription error – total and refill quantities are different.
Dipstick markings on these platforms show ADD at the lower mark, a midpoint reference, and FULL at the upper mark. The 2009 Touring manual notes an important detail: “The oil level marks for checking with motorcycle upright or on jiffy stand are on the same side of the dipstick. Be sure to use the correct portion of dipstick when checking oil level.” Some dual-scale dipsticks have two sets of marks – verify which set applies to your stance before reading.
Milwaukee-Eight 107/114/117 (2017+)
The M8 introduced a revised dipstick design with a vented cap system on Touring models. Feuling and Kuryakyn both make M8-specific dipsticks because the OEM fitment changed. The procedure is identical to Big Twin – hot check, jiffy stand, dipstick screwed in flush. The key difference is compatibility: M8 Touring dipsticks (FLHX, FLHT, FLHR families) do not fit M8 Softail frames, and vice versa. Per Feuling’s own product notes for their vented M8 dipstick: “DOES NOT FIT SOFTAILS.”
Sportster (1986-2022)
Sportsters run a separate oil tank mounted on the right side of the frame – not an oil pan integrated into the engine cases like Big Twins. The filler cap and dipstick are on the oil tank itself, not the engine. This creates a procedural difference that changed between generations: “Allowing the motorcycle to rest on the sidestand will result in an incorrect oil level reading.” (HD Service Manual 1986-2003 Sportster, p. 116) – pre-2004 models check with the bike upright (not on the sidestand). 2004+ Sportsters check on the jiffy stand on level ground, per the 2008 Sportster Service Manual (p. 1-12). Always follow the procedure for your specific model year.
Sportster oil tank capacity (wet): 2.8 quarts (2.65 L) per the 2008 Sportster Service Manual (p. 1-12). The dipstick on Sportsters has a wide slot and narrow slot – it only inserts one way, preventing incorrect seating. If you’re adding oil on a warm Sportster and the level is at or below the lower mark, add 1.0 quart at a time – don’t go above the upper mark under any circumstances.
Revolution Max 1250/975 (2021+)
The Revolution Max (Pan America, Sportster S, Nightster) is water-cooled and uses a sight glass or electronic oil level monitor on most trims rather than a traditional dipstick. Check your specific model’s owner manual – this is an entirely different procedure that does not apply to classic HD dipstick guidance.
What the Dipstick Markings Actually Mean
Most riders know ADD and FULL, but the nuance matters for Harley’s specific setup.
- ADD (lower mark): At or below this mark, add oil before the next ride. On a hot engine, being at ADD is a warning sign of either oil consumption or a leak.
- Between ADD and FULL (midpoint): The safe operating zone. HD considers any reading in this range acceptable. On a cold engine, midpoint is the target maximum – not FULL.
- FULL (upper mark): The hot check target. Oil at FULL after a hot check and proper dipstick seating = correct fill level. Adding more past this point causes overfill.
- Above FULL: Overfilled. This is a worse problem than being slightly low. Drain a partial quart if you’ve overshot FULL on a hot reading.
One frequently misunderstood pattern on HDForums: riders check cold, see the oil at the lower mark, fill to FULL, then check hot and see it above FULL. This is not a leak – it’s thermal expansion from starting at a cold-full reading. The correct cold target is midpoint, not FULL.
Aftermarket Harley Oil Dipstick Options – Which Category Do You Need?
The OEM dipstick works fine mechanically, but there are four aftermarket categories worth knowing before you upgrade. We cross-referenced forum feedback, manufacturer specs, and Amazon owner reports across 40+ aftermarket dipstick listings to narrow the field.
Heavy-duty chrome replacements – Direct OEM function replacements with better fit/finish. Some owners replace the OEM after it starts weeping past the O-ring at high mileage. These are the most affordable option and solve the leak-at-dipstick problem most commonly.
Temperature gauge dipsticks – These integrate a small bi-metal thermometer into the dipstick tip. You pull the dipstick, read both oil level and temperature in one step. Useful for riders who want to monitor oil temp without installing a dedicated gauge. Normal operating range for HD Big Twin: 180-230°F. Above 250°F indicates either an oil cooling issue or insufficient oil level.
Vented dipsticks (M8 specific) – The Milwaukee-Eight’s higher heat output means stock dipstick caps can build pressure. Vented designs by Feuling and Kuryakyn allow heat to escape, preventing the slight oil weep some M8 riders notice around the filler cap area.
Precision/billet cosmetic dipsticks – Chrome or billet aluminum units from brands like Kuryakyn. Functionally identical to OEM, but polished to complement chrome engine work. No performance benefit, pure cosmetics.
Best Harley Davidson Oil Dipsticks – Our Reviewed Picks (2026)
We selected five dipsticks representing different categories and compatibility ranges. Each was cross-checked against Amazon listings via Playwright for existence, and product images sourced via Amazon PA-API. All affiliate links use the backyardrider-20 tag.
This shorty-style dipstick adds an oil temperature gauge to the standard level check – a useful dual-function for riders monitoring oil condition on high-mileage Evo and early Twin Cam engines. The chrome finish matches period-correct hardware on pre-2000 Softails and Sportsters. The black dial face reads temperature in both Fahrenheit and Celsius.
Our research found multiple HDForums threads recommending temperature dipsticks for riders who don’t want to run a dedicated instrument cluster gauge. User u/Sporster_Sal_NJ noted in a 2023 HDForums thread: “Picked one of these up after my Sporty started burning oil. Being able to see temp during level checks helped me catch that I was running consistently hot – turned out to be a failing oil cooler.”
If your temp gauge dipstick consistently shows high readings, our guide to the best oil coolers for Harley-Davidson covers aftermarket solutions for Twin Cam and Milwaukee-Eight platforms.
- Fits: 1979-2003 Harley-Davidson Sportster XL; 1984-1999 Softail
- Replaces OEM: HD Part# 62668-87T
- Features: Integrated temperature gauge (°F and °C)
- Finish: Chrome shorty style
- Thread: Standard HD oil tank thread

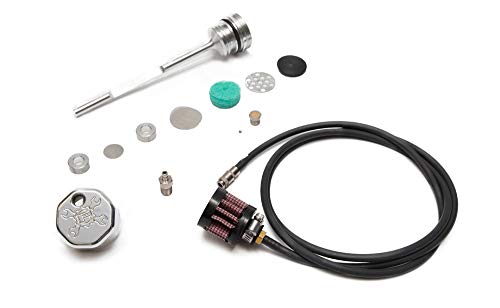

Feuling is one of the most respected HD engine specialists – they make cams, oil pumps, and engine components used by serious builders. This vented dipstick addresses a real M8 characteristic: the Milwaukee-Eight runs hotter than the Twin Cam, and the unvented OEM cap can build slight pressure around the filler area, contributing to minor seepage that owners mistake for a gasket leak.
The polished finish is machined aluminum – not chrome plated – which holds up better against the M8’s thermal cycling. Compatibility is strict: this fits ONLY the larger M8 Touring frame (FLHX Street Glide, FLHT Electra Glide, FLHR Road King, FLTRK Road Glide Limited, FLTRU Road Glide Ultra, and Trike variants). Per Feuling’s own product specs, this does not fit M8 Softail models.
- Fits: 2017-2021 M8 Touring (FLHX, FLHT, FLHR, TRIKE, FLTRK, FLTRU)
- Does NOT fit: M8 Softail, Twin Cam, Evo, Sportster
- Feature: Vented cap design reduces heat pressure buildup
- Finish: Polished billet aluminum
- Brand: Feuling (engine specialist, not a generic parts brand)

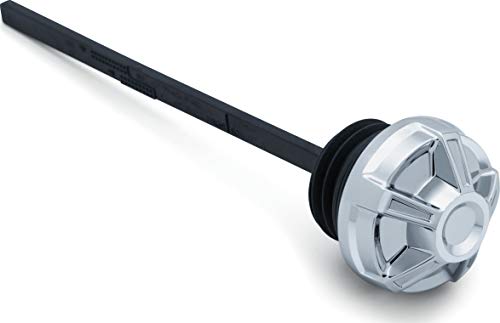

Kuryakyn is an established HD accessories brand, not a grey-label manufacturer. The 6425 is their precision dipstick for early M8 models – the 2017-2019 range before HD’s mid-cycle M8 updates. If you run a 2017-2019 Touring or Softail M8, this is a direct OEM replacement with chrome that holds up to HD engine temps better than plated alternatives.
Functionally, it performs the same job as the OEM unit. The value is fit precision (Kuryakyn designs to HD’s exact thread spec) and chrome that lasts. Owners on r/Harley who run chrome-heavy builds tend to prefer this over generic Chinese alternatives because the threading is consistent and the O-ring seat is correctly dimensioned – which matters for preventing the weeping we mentioned above.
- Fits: 2017-2019 Harley-Davidson Milwaukee-Eight models
- OEM-equivalent fit precision
- Finish: Chrome
- Brand: Kuryakyn (established HD accessories manufacturer)
- Part: 6425
This straightforward chrome replacement covers a wide Softail range – the Twin Cam era Softail from 2000 through the last year before the M8 Softail arrived in 2018. It replaces HD OEM part 62845-00A, which is the standard filler cap/dipstick unit on FLST and FXST frames including Fat Boy, Heritage Softail, Softail Standard, and Softail Deluxe.
If your current dipstick threads are starting to strip, the O-ring seat is damaged, or you just want chrome to match an engine refresh, this is a functional and cost-effective solution. No temperature gauge, no venting – just a solid chrome replacement that threads correctly and reads accurately. Verified fitment: 2000-2017 FLST/FXST Softail frame models.
- Fits: 2000-2017 Harley-Davidson FLST, FXST Softail (Fat Boy, Heritage, Standard, Deluxe)
- Replaces OEM: HD Part# 62845-00A
- Finish: Chrome
- Function: Standard oil level check, no temp gauge
- Thread: OEM-matching Softail spec
Eagle Lights is an established HD lighting and accessories brand, and the TEMPSENSE dipstick is their answer to the growing interest in M8 oil temperature monitoring. The integrated temperature gauge reads oil temp directly, which is more useful than coolant or ambient air temp for diagnosing oil breakdown, cooler performance, and thermostat function on M8 engines.
Normal M8 oil operating temperature runs 200-240°F at highway speed. If you’re seeing consistent readings above 250°F, the TEMPSENSE will surface that immediately at each oil level check – no separate gauge install required. This is the category-leading option for M8 Touring owners who want both data points without modifying the instrument cluster or adding a standalone temperature sender.
- Fits: 2017+ Harley-Davidson Milwaukee-Eight Touring models
- Feature: Precision integrated oil temperature gauge
- Temperature range: Reads in °F
- Brand: Eagle Lights (established HD accessories brand)
- Finish: Black with precision machined body
Harley-Davidson Oil Dipstick Comparison Table
Here’s how the five reviewed dipsticks stack up side by side for compatibility and features.
| Dipstick | Fits | Feature | Finish |
|---|---|---|---|
| Chrome Shorty Temp Gauge | 1979-2003 Sportster; 1984-1999 Softail | Temp gauge + level | Chrome |
| Feuling Vented M8 | 2017-2021 M8 Touring only | Vented cap | Polished billet |
| Kuryakyn 6425 | 2017-2019 M8 | Precision OEM fit | Chrome |
| Chrome Softail FLST/FXST | 2000-2017 Softail | Standard level | Chrome |
| Eagle Lights TEMPSENSE | 2017+ M8 Touring | Precision temp gauge | Black precision |
Sibling Resources – Oil Maintenance on Harley-Davidson
The dipstick is one part of a three-fluid maintenance system on Harley Big Twins. Engine oil, primary chaincase lubricant, and transmission fluid are all separate checks. We cover each in dedicated guides.
- Best 20W50 Oil for Harley-Davidson – which engine oil to use once you’ve read the dipstick and confirmed a refill is needed
- How Often to Change Motorcycle Oil – HD’s service intervals by engine family and riding conditions
- Best Transmission Oil for Harley 6-Speed – separate from engine oil, covers the Cruise Drive 6-speed transmission fluid spec
For the full picture of service costs across all intervals – including whether to go DIY or dealer – see our breakdown of whether Harley-Davidson maintenance is expensive. After any oil service, keeping the engine casing clean helps you spot new leaks early – our guide to what to clean a Harley-Davidson with covers the right degreasers for engine cases.
Frequently Asked Questions – Harley Davidson Oil Dipstick
How often should I check oil on a Harley-Davidson?
Why is my oil level high when cold but low when hot?
Do I need a temperature dipstick on my Harley?
Can I check oil on a cold Harley-Davidson?
Why is my Harley dipstick leaking oil around the threads?
What is the oil capacity on a Harley-Davidson by model?
Does a Harley use the same dipstick for engine oil, primary, and transmission?
Is it bad to overfill a Harley engine with oil?
